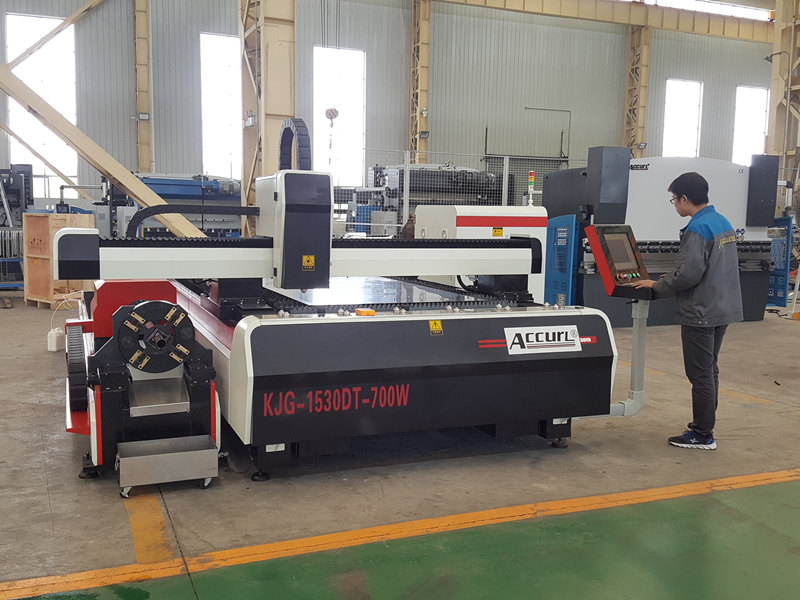

1500W Laser Tube Cutting Machine for Sale Tube Pipe Laser 1.5KW metal Cutter
ACCURL 1500W Laser Tube Cutting Machine for Sale Tube Pipe Laser and metal Cutting Machine brings you a cost effective, low-maintenance, low operating cost,environmentally friendly solution to your organization. We deliver a machine that provides quality cutting and tolerances with small productivity loss between jobs, equating to higher returned investments. Our fiber laser cutting machines are developed and sold based on these criteria.
Main Parts:
| Article Name | Remark |
| Fiber laser resonator | IPG (Germany)/1000W |
| Servo motor and driver | DELTA (Taiwan) |
| Ball screw rod | HIWIN (Taiwan) |
| Liner guide | HIWIN (Taiwan) |
| Gear rack | YYC (Taiwan) |
| Laser head | RAYTOOLS (Switzerland) |
| Chiller | TONG FEI (China) |
| Controller | FISCUT (China) |
| Gas Proportional valve | SMC (Japan) |
| Reduction gear box | APEX (Taiwan) |
Specification:
| Laser power | 1000W IPG Fiber Laser |
| Laser source | Germany IPG fiber laser resonator |
| Processing surface (L × W) | 3000mm x 1500mm |
| CNC control | Shanghai FISCUT CypCut |
| Laser head | Switzerland Raytools |
| Power supply | AC380V±5% 50/60Hz (3 phase) |
| Total electric power | 14KW |
| Position accuracy X, Y and Z axle | +0.03mm |
| Repeat position accuracy X, Y and Z axle | +0.02mm |
| Maximum position speed of X and Y axle | 72m/min |
| Acceleration | 1g |
| Max load of working table | 1000kg |
| Drawing programming mode | AI, DWG, PLT, DXF format import directly |
| Machine weight | 5T |
| *** Note: As products are constantly updated, please contact us for latest specifications. *** | |
Cutting Thickness Limit:
| Material | Cutting Thickness Limit |
| Carbon steel | 12mm |
| Stainless steel | 6mm |
| Aluminum | 4mm |
| Brass | 3mm |
| Copper | 3mm |
Main Parts:
| Article Name | Remark |
| Fiber laser resonator | IPG (Germany)/1000W |
| Servo motor and driver | DELTA (Taiwan) |
| Ball screw rod | HIWIN (Taiwan) |
| Liner guide | HIWIN (Taiwan) |
| Gear rack | YYC (Taiwan) |
| Laser head | RAYTOOLS (Switzerland) |
| Chiller | TONG FEI (China) |
| Controller | FISCUT (China) |
| Gas Proportional valve | SMC (Japan) |
| Reduction gear box | APEX (Taiwan) |
