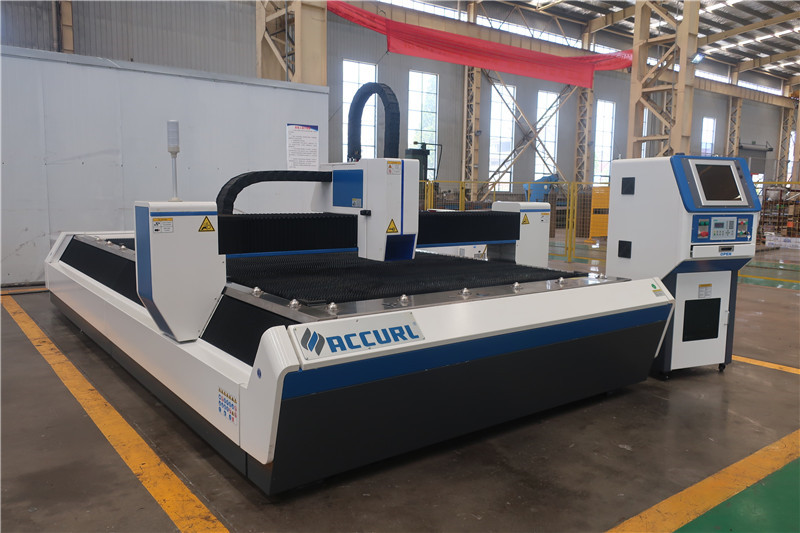

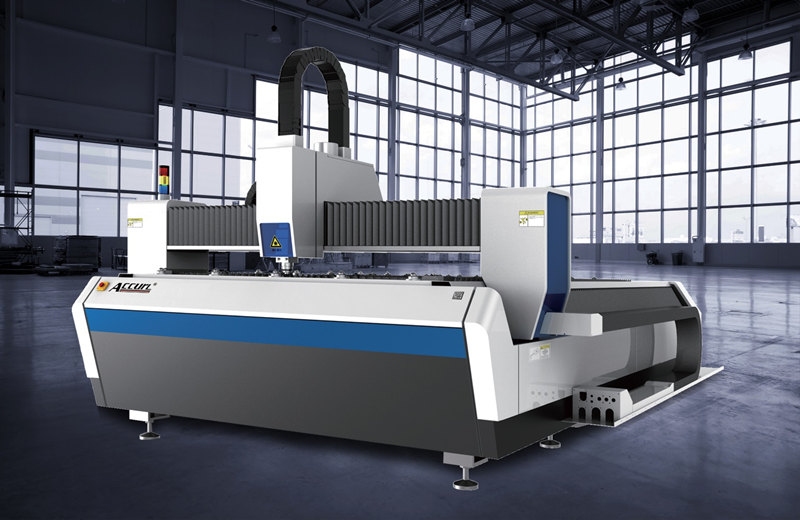

ACCURL 2000W Fiber Laser Cutting Machine KJG-1530 with IPG 2Kw
ACCURL 2000W Laser Cutting Machine for Sale team is designed for processing section material with a length of 3,000 mm and a diameter not exceeding 150 mm, and for processing sheet material sized max. 3,000 x 1,500 mm.It has a drive in the form of a combination of servomotors and the system of a rack and a pinion. The advantages of this combination are reflected mainly in the processing of shape-demanding objects.
Features:
√ User friendly Cypcut Windows CAD/CAM CNC control unit.
√ Very easy to operate.
√ Quick and easy installation.
√ Low investment and operating costs.
√ The most cost-efficient solution for every requirement.
√ Flexible beam path
√ High output power
√ High optical quality
√ Up to %300 faster cutting
√ High wall plug efficiency (>%30)
√ Copper, brass cutting ability

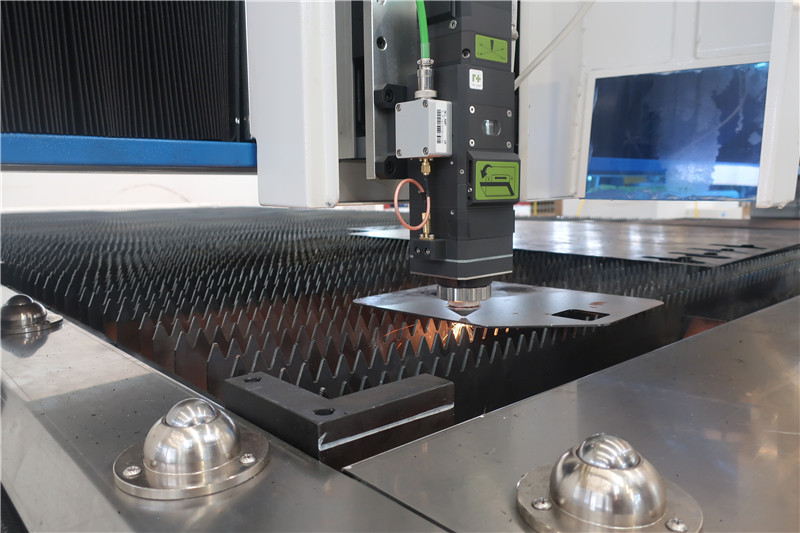

√ Advanced Raytools cutting head (with air cross blast).

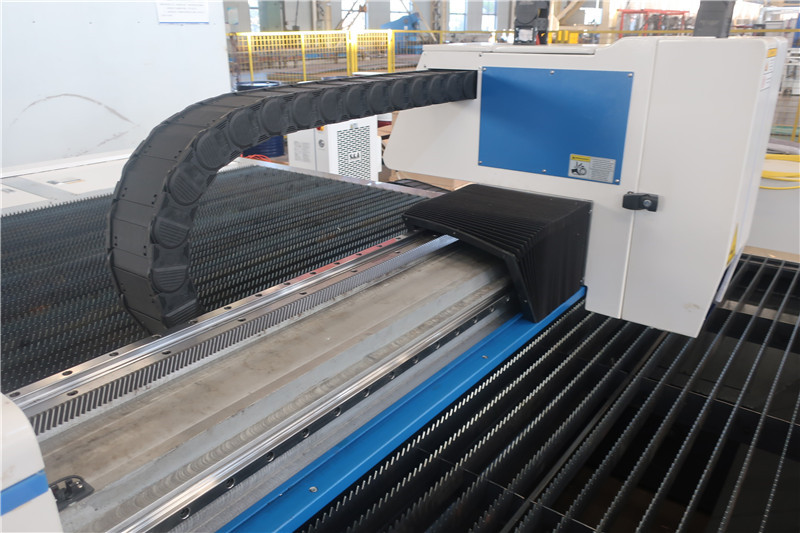

√ High performance and high accuracy rack and pinion system.
Standard Equipments:
√ IPG YLS-2000W Ytterbium Laser Resonator
√ Linear Driven X, U and Y Axes

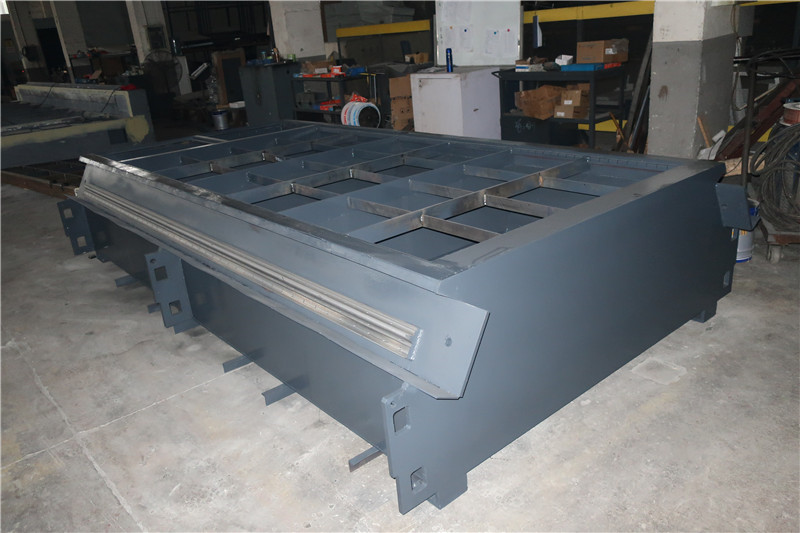

√ High Rigid Frame
√ Empower or FAGOR CNC Controller
√ Precitec Cutting Head
√ Lantek Software
√ Shuttle Table
√ Chiller Unit
√ Proportional Gas and Piping System
√ Dust Filter
√ Compressor
√ Conveyor for Scraps
Specification:
| Laser power | 1000W IPG Fiber Laser |
| Laser source | Germany IPG fiber laser resonator |
| Processing surface (L × W) | 3000mm x 1500mm |
| CNC control | Shanghai FISCUT CypCut |
| Laser head | Switzerland Raytools |
| Power supply | AC380V±5% 50/60Hz (3 phase) |
| Total electric power | 26KW |
| Position accuracy X, Y and Z axle | +0.03mm |
| Repeat position accuracy X, Y and Z axle | +0.02mm |
| Maximum position speed of X and Y axle | 72m/min |
| Acceleration | 1g |
| Max load of working table | 1000kg |
| Drawing programming mode | AI, DWG, PLT, DXF format import directly |
| Machine weight | 5T |
| *** Note: As products are constantly updated, please contact us for latest specifications. *** | |
Main Parts:
| Article Name | Remark |
| Fiber laser resonator | IPG (Germany)/2000W |

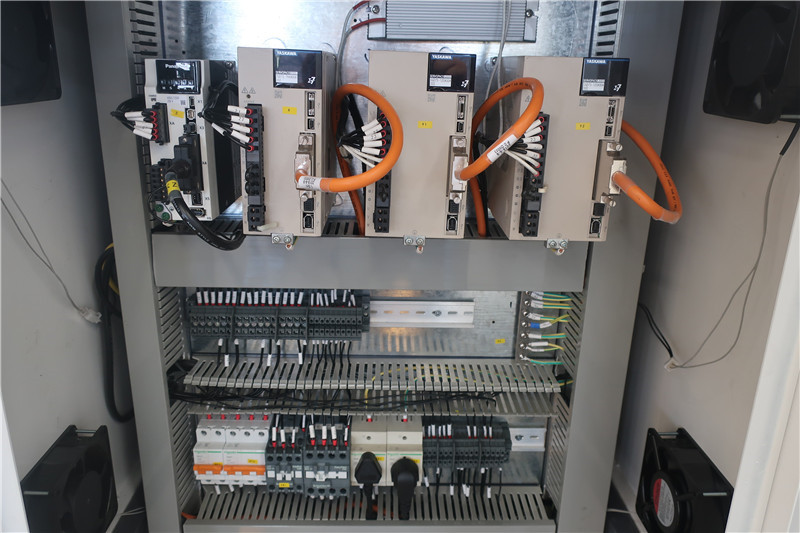

| Servo motor and driver | DELTA (Taiwan) |
| Ball screw rod | HIWIN (Taiwan) |
| Liner guide | HIWIN (Taiwan) |

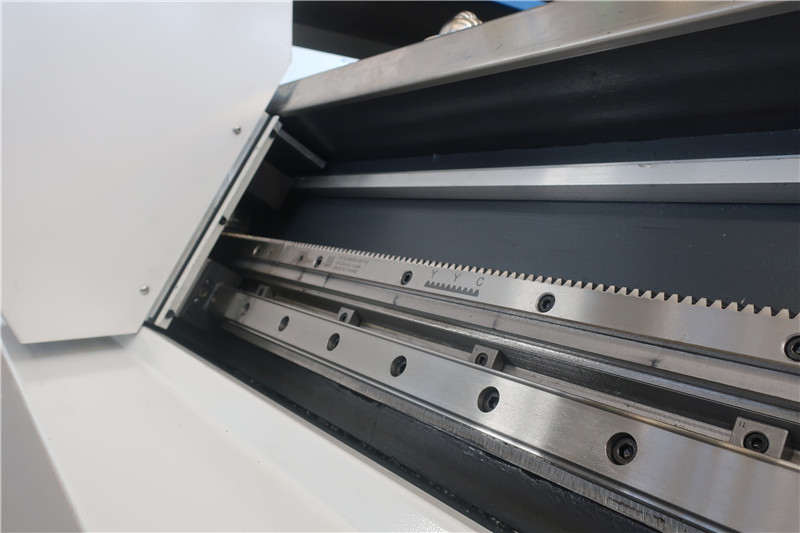

| Gear rack | YYC (Taiwan) |
| Laser head | RAYTOOLS (Switzerland) |
| Chiller | TONG FEI (China) |
| Controller | FISCUT (China) |
| Gas Proportional valve | SMC (Japan) |

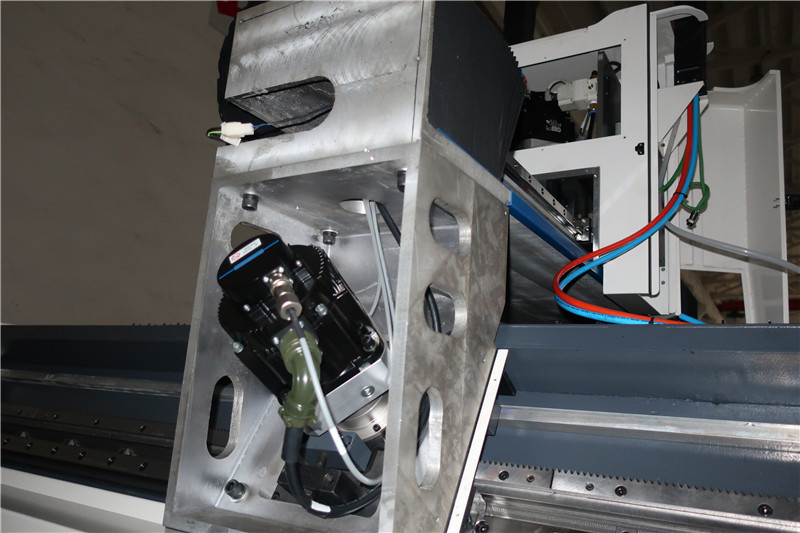

| Reduction gear box | APEX (Taiwan) |
Cutting Thickness Limit:
| Material | Cutting Thickness Limit |
| Carbon steel | 16mm |
| Stainless steel | 8mm |
| Aluminum | 8mm |
| Brass | 6mm |
| Copper | 6mm |
