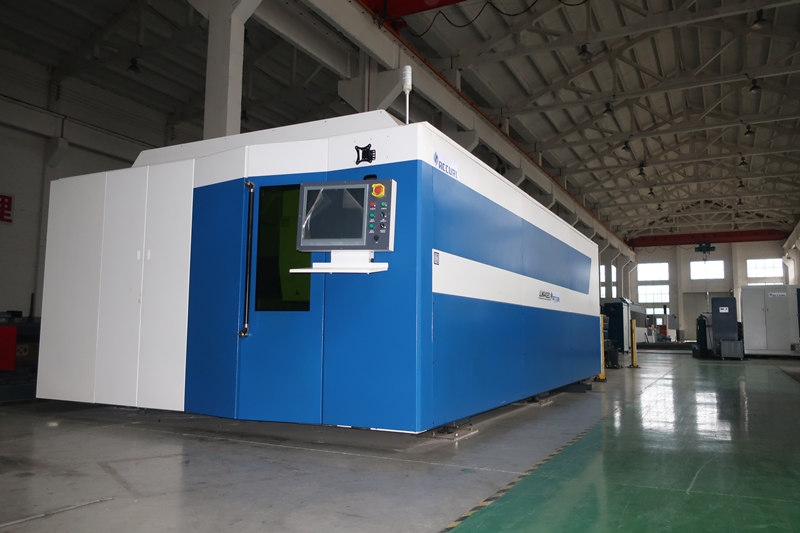

Accurl IPG 6KW Fiber Laser Cutting Machine Manufacturers
ACCURL Genius 6kw fiber laser cutter has 4 servo motors for all axial movements.These are the latest technology single cable servomotors.Power and process data are transmitted in one standard motor cable, significantly reducing costs.This technology also gives more accurate positioning and more geometrically accurate parts.
General Features:
♦ User friendly FAGOR 8060 CNC control unit.
♦ Unique features:
√ Maximum simultaneous positioning speed: 160m/min.
√ Acceleration speed: 25 m/ s2 (2.5G).
√ Precision: ± 0.05 mm.
√ Energy efficiency: greatly reduced power consumption.
√ IPG YLS-6000w Resonator
♦ Advanced PRECITEC cutting head (with air cross blast).
♦ Fully enclosed and cabinned to ensure maximum operator protection.
♦ Effective high to low pressure gas exchange system.
♦ Automatic time and unit cost calculation function.
♦ Network connection from external.
♦ Smoke extraction (included in series models).
♦ Collection of work pieces and trimmings.
♦ Dual proportional valve control system for different gas pressures and special system for high pressure cutting.
Standard Equipment:
√ FAGOR 8060 CNC Controller
√ IPG YLS-6000W Ytterbium Laser Resonator
√ Automatic Double Pallet Changer(Shuttle Table)
√ Precision Rack & Pinion Drive System (Made in Germany)
√ Radan or Lantek CAD/CAM system
√ Light source
√ Chiller
√ 3 lower protective lenses
√ 3 Ceramic Nozzle Adapters
√ Auto-calibrated nozzle system
√ Lens with 5.9” Focus Length
√ Smart Slag Collection System/ Chip Conveyor
√ Fiber Beam Transmission System (Fiber Cable)
√ Operates with both N2 and O2 (cutting) gases
√ Home Position Alignment System
√ Auxiliary Gas Selector
√ Auto Reflection Warning
√ Working Lights
√ 5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)
Specification:
| Model | ECO-FIBER 3015 / 6KW | |
| CNC Control Unit | FAGOR 8060 CNC System | |
| X axis (Rack & Pinion) | 3000 mm | |
| Y axis (Rack & Pinion) | 1500 mm | |
| Z axis (Ball Screw) | 100 mm | |
| Maximum cutting capacity | Mild steel | 32 mm |
| Stainless steel | 16 mm | |
| Aluminum | 16 mm | |
| Work piece dimensions | 1525 x 3050 mm | |
| Rapid traverse (X and Y axis) | 105 m/min | |
| Acceleration | 2.5G (25m/s2) | |
| Vector speed | 148 m/min | |
| Absolute positioning accuracy | ± 0.08 mm | |
| Repeatability (X and Y axis) | ± 0.03 mm | |
| Max. load capacity | 2450 kg | |
| High Performance CNC System | FAGOR 8060 from Spain Brand | |
| Laser power | IPG YLS-6 kW from Germany | |
| High Performance Servo motor/drive | FAGOR from Spain Brand | |
| Laser Cutting Head | PRECITEC from Germany | |
| Motor reducer | STOBER from Germany | |
