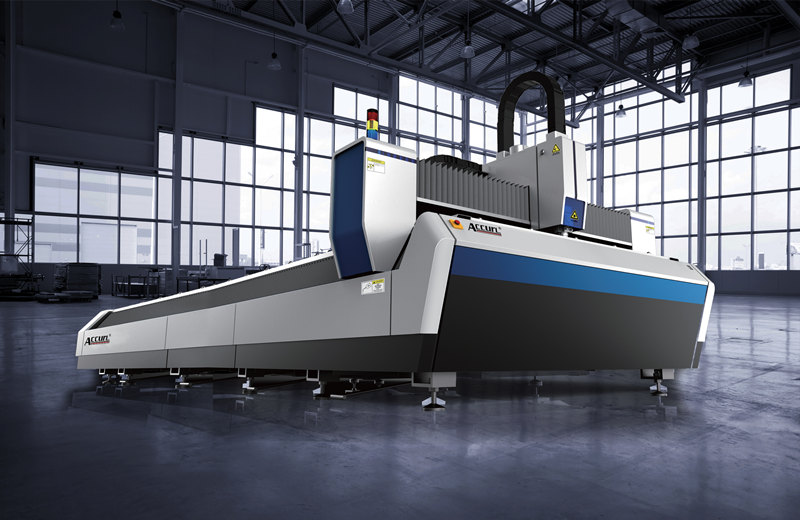

ACCURL Manufacturers 1000W Fiber CNC Laser Cutting Machine with IPG 1KW
ACCURL Manufacturers 1000w Fiber CNC Laser Cutting Machine team now is produced with efficient and ecological fiber laser technology with the proven reliability and flexibility; the beautiful atmosphere, compact structure, small footprint; under two helical gear drive, shaft bevel gear, high speed and precision;the device consists of a main machine, cutting table, control cabinet, fiber laser, laser cutting,CNC system,cooler,air system,conditioner,power supply and exhaust system components.
General Features:
√ %70 low electricity consumption in comparison with CO2 Laser
√ Up to %300 faster cutting
√ High wall plug efficiency (>%30)
√ Flexible beam path
√ Maintenance free
√ Copper, brass cutting ability
√ High output power
√ High optical quality
√ Compact size
√ Reliability
Standard Equipments :
√ IPG YLS-1000W Ytterbium Laser Resonator
√ Linear Driven X, U and Y Axes
√ High Rigid Frame
√ Empower or FAGOR CNC Controller
√ Precitec Cutting Head
√ Lantek Software
√ Shuttle Table
√ Chiller Unit
√ Proportional Gas and Piping System
√ Dust Filter
√ Compressor
√ Conveyor for Scraps
Specification:
| Laser power | 1000W IPG Fiber Laser |
| Laser source | Germany IPG fiber laser resonator |
| Processing surface (L × W) | 3000mm x 1500mm |
| CNC control | Shanghai FISCUT CypCut |
| Laser head | Switzerland Raytools |
| Power supply | AC380V±5% 50/60Hz (3 phase) |
| Total electric power | 14KW |
| Position accuracy X, Y and Z axle | +0.03mm |
| Repeat position accuracy X, Y and Z axle | +0.02mm |
| Maximum position speed of X and Y axle | 72m/min |
| Acceleration | 1g |
| Max load of working table | 1000kg |
| Drawing programming mode | AI, DWG, PLT, DXF format import directly |
| Machine weight | 5T |
| *** Note: As products are constantly updated, please contact us for latest specifications. *** | |
Cutting Thickness Limit :
| Material | Cutting Thickness Limit |
| Carbon steel | 12mm |
| Stainless steel | 6mm |
| Aluminum | 4mm |
| Brass | 3mm |
| Copper | 3mm |
Main Parts:
| Article Name | Remark |
| Fiber laser resonator | IPG (Germany)/1000W |
| Servo motor and driver | DELTA (Taiwan) |
| Ball screw rod | HIWIN (Taiwan) |
| Liner guide | HIWIN (Taiwan) |
| Gear rack | YYC (Taiwan) |
| Laser head | RAYTOOLS (Switzerland) |
| Chiller | TONG FEI (China) |
| Controller | FISCUT (China) |
| Gas Proportional valve | SMC (Japan) |
| Reduction gear box | APEX (Taiwan) |
