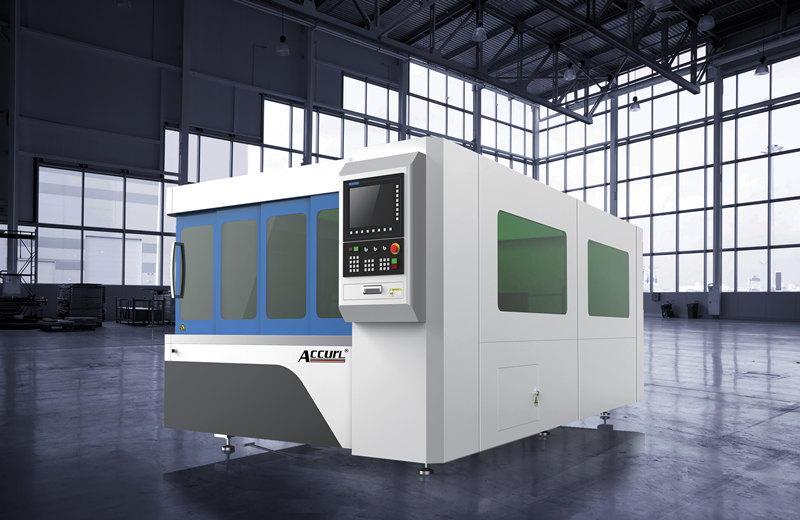

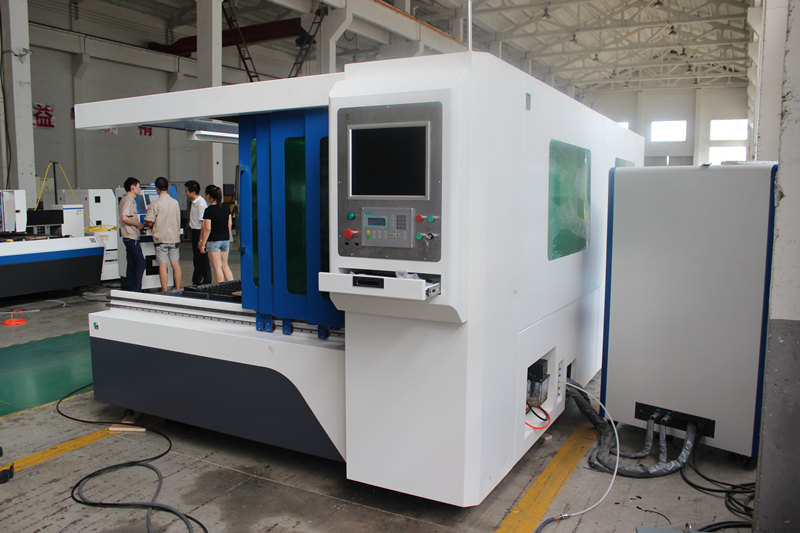

IPG 700w Sheet Metal Laser Cutting Machine China Manufacturer
ACCURL IPG 700w Sheet Metal Laser Cutting Machine is designed for processing different types of pipes and with CE clean room.Its maximum simultaneous positioning speed can reach 160m/min.Fully enclosed and cabinned to ensure maximun operator protection.
Features :
√ User friendly Cypcut Windows CAD/CAM CNC control unit.
√ Very easy to operate.
√ Quick and easy installation.
√ Low investment and operating costs.
√ The most cost-efficient solution for every requirement.
√ Flexible beam path
√ High output power
√ High optical quality
√ Up to %300 faster cutting
√ High wall plug efficiency (>%30)
√ Copper, brass cutting ability
√ Advanced Raytools cutting head (with air cross blast).
√ High performance and high accuracy rack and pinion system.
√ Dual proportional valve control system for different gas pressures and special system for high
Optional Equipment:
√ Shuttle Table and Clean Room
√ Table size 1500x4000mm
√ Table size 2000x4000mm
√ Pipe cutting system(φ220mm / 3000mm)
√ Cutting Head from PRECITEC- Manual(500w-1500w)
√ USA.IPG / nLIGHT / China.Raycus Fiber Laser Power(500w-2kw)
Applicable Materials:
Cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate, metal pipe and tube, etc.
Technical Specification :
| Laser power | 700W Fiber Laser cutting machine |
| Laser source | America / Russia IPG fiber laser resonator |
| Processing surface (L × W) | 3000mm x 1500mm |
| CNC control | Shanghai FISCUT CypCut |
| Laser head | Switzerland Ray tools |
| Power supply | AC380V±5% 50/60Hz (3 phase) |
| Total electric power | 12KW |
| Position accuracy X, Y and Z axle | +0.03mm |
| Repeat position accuracy X, Y and Z axle | +0.02mm |
| Maximum position speed of X and Y axle | 72m/min |
| Acceleration | 1g |
| Max load of working table | 800kg |
| Drawing programming mode | AI, DWG, PLT, DXF format import directly |
| Machine weight | 5T |
| *** Note: As products are constantly updated, please contact us for latest specifications. *** | |
Main Parts :
| Article Name | Remark |
| Fiber laser resonator | IPG (America/Russia) / 700W |
| Servo motor and driver | DELTA (Taiwan) |
| Ball screw rod | HIWIN (Taiwan) |
| Liner guide | HIWIN (Taiwan) |
| Gear rack | YYC (Taiwan) |
| Laser head | RAYTOOLS (Switzerland) |
| Chiller | HAN LI (China) |
| Controller | FISCUT (China) |
| Gas Proportional valve | SMC (Japan) |
| Reduction gear box | APEX (Taiwan) |
Cutting Thickness Limit:
| Material | Cutting Thickness Limit |
| Carbon steel | 8mm |
| Stainless steel | 5mm |
| Aluminum | 3mm |
| Brass | 3mm |
| Copper | 2mm |
