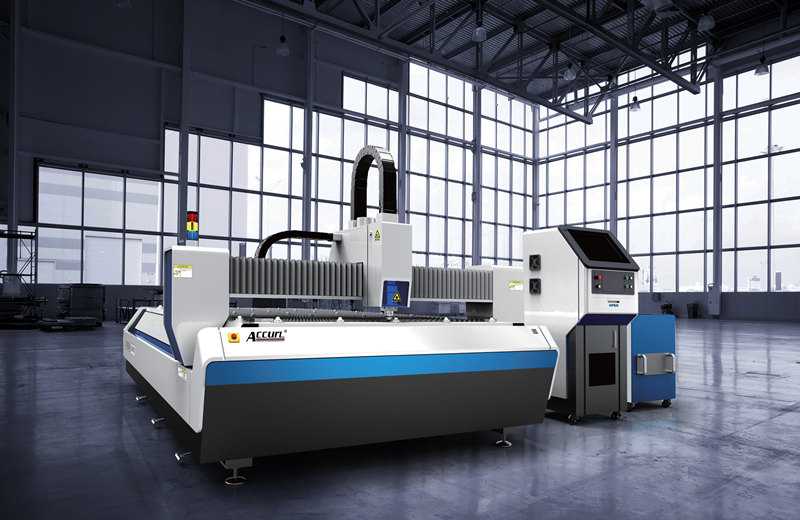

IPG Fiber 500W CNC Laser Cutting Machine for Metal Tube Laser Cutting Machine
ACCURL 500W Fiber Laser Cutting Machine can be used to cut a wide range of materials. Fiber lasers are more effective than other laser sources for cutting highly reflective materials e.g. aluminium alloys, cooper, brass...etc. Varied thicknesses (up to 22 mm of mild steel) can be cut with efficiency and quality. Productivity increases particularly with thin sheet metal with almost zero maintenance and 70% less cutting cost compared to CO2 laser cutting machine.
Applicable material:
Dedicated in cutting carbon steel(within 10mm), stainless steel, galvanized steel, electrolytic plate. silicon steel, aluminum, copper and other metal materials which thickness within 5mm.
General Features:
√ %70 low electricity consumption in comparison with CO2 Laser
√ Up to %300 faster cutting
√ High wall plug efficiency (>%30)
√ Flexible beam path
√ Maintenance free
√ Copper, brass cutting ability
√ High output power
√ High optical quality
√ Compact size
√ Reliability
Standard Equipments:
√ IPG YLS-500W Ytterbium Laser Resonator
√ Linear Driven X, U and Y Axes
√ High Rigid Frame
√ Empower or FAGOR CNC Controller
√ Precitec Cutting Head
√ Lantek Software
√ Shuttle Table
√ Chiller Unit
√ Proportional Gas and Piping System
√ Dust Filter
√ Compressor
√ Conveyor for Scraps
Specification:
| Model | Smart KJG-1530 / IPG 500w | |
| Maximum cutting capacity | Mild steel | 6mm |
| Stainless steel | 2.5mm | |
| Aluminum | 2mm | |
| Copper | 1mm | |
| Laser Power | YLR-500Watt IPG | |
| Max running speed | 40/min | |
| Work piece dimensions | 1500 x 3000mm | |
| Rapid traverse (X and Y axis) | 105 m/min | |
| Acceleration | 1.2G (12m/s2) | |
| Absolute positioning accuracy | ± 0.03 mm | |
| Max. load capacity | 1550 kg | |
| Fume extractor | 1000 m3/hour | |
| Laser Cutting Head | Ray Tools BM110 from Switzerland | |
| Feed rate | Programmable up to 30 m/min. | |
| Applied Materials | Thin mild steel, Stainless steel, Aluminum, Copper plate | |
