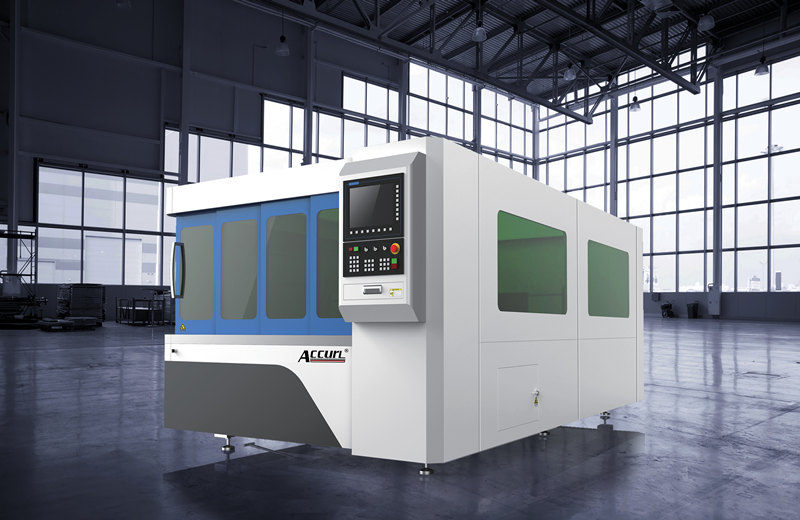

Sheet Metal IPG 1000W Fiber Laser Cutting Machine

Sheet Metal IPG 1000W Fiber Laser Cutting Machine

ACCURL Sheet Metal IPG 1000w Fiber Laser Cutting Machine with high performance and free maintenance.Accurl laser cutting machine body using steel box welding process,twice annealing and on the large gantry CNC lathe processing.Its excellent cutting quality for fine thickness and medium thickness sheet metal.

Sheet Metal IPG 1000W Fiber Laser Cutting Machine

Features :

1.Machine structure frame precisely welded by CO2, high temperature annealing treatment to ensure normally to run without deforming.

2.Imported high precision ball screw transmission and high precision linear guide rail

3.Japanese servo motor and driver system, imported high-rigidly precision gearbox

4.Equipped with auto-lubrication device with dust removal and smoke extractor system

5.Modular structure laser, High performance and free maintenance

6.Professional laser cutting software, easy to operate, design all kinds of graphs, texts easily by your will to cut Accessories

Standard Equipments

IPG YLR-1000W Ytterbium Laser Resonator

Linear Driven X, U and Y Axes

High Rigid Frame

Empower or FAGOR CNC Controller

Precitec Cutting Head

Lantek Software

Shuttle Table

Chiller Unit

Proportional Gas and Piping System

Dust Filter

Compressor

Conveyor for Scraps

Sheet Metal IPG 1000W Fiber Laser Cutting Machine
Sheet Metal IPG 1000W Fiber Laser Cutting Machine

Fiber Laser Cutting Machine Applicable Materials:

Cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate, metal pipe and tube, etc.

Specification:

Laser power1000W IPG Fiber Laser Cutting Machine
Laser sourceGermany IPG fiber laser resonator
Processing surface (L × W)3000mm x 1500mm
CNC controlShanghai FISCUT CypCut
Laser headSwitzerland Raytools
Power supplyAC380V±5% 50/60Hz (3 phase)
Total electric power14KW
Position accuracy X, Y and Z axle+0.03mm
Repeat position accuracy X, Y and Z axle+0.02mm
Maximum position speed of X and Y axle72m/min
Acceleration1g
Max load of working table1000kg
Drawing programming modeAI, DWG, PLT, DXF format import directly
Machine weight5T
*** Note: As products are constantly updated, please contact us for latest specifications. ***
IPG 700w Sheet Metal Laser Cutting Machine China Manufacturer

Cutting Thickness Limit:

MaterialCutting Thickness Limit
Carbon steel12mm
Stainless steel6mm
Aluminum4mm
Brass3mm
Copper3mm

Main Parts:

Article NameRemark
Fiber laser resonatorIPG (Germany)/1000W
Servo motor and driverDELTA (Taiwan)
Ball screw rodHIWIN (Taiwan)
Liner guideHIWIN (Taiwan)
Gear rackYYC (Taiwan)
Laser headRAYTOOLS (Switzerland)
ChillerTONG FEI (China)
ControllerFISCUT (China)
Gas Proportional valveSMC (Japan)
Reduction gear boxAPEX (Taiwan)
